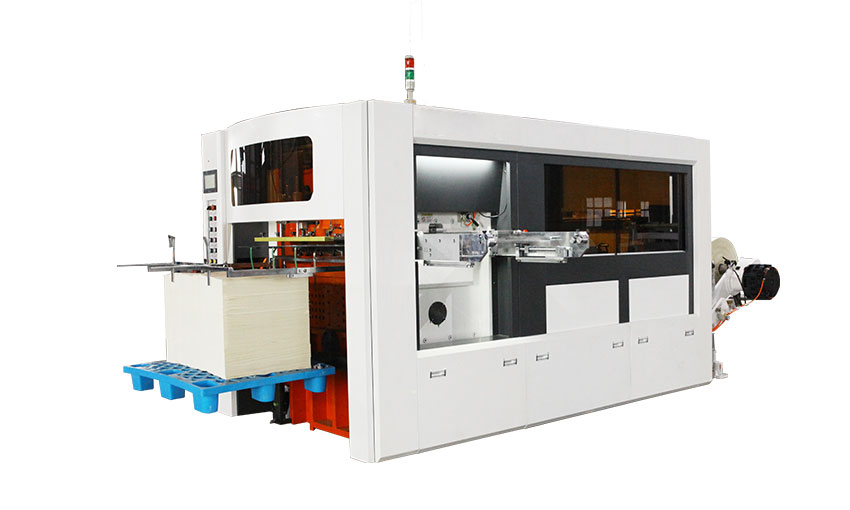

KTPP-Paper Roll Die Cutting Machine
Future:
This Paper Roll Die Cutting Machine is for die cutting,creasing,embossing on the paper roll.It can work on the paper box,paper cup,
Performance and Characteristics:
- With servo motor controlled
- Max withstand pressure 350T
- With 4 positioning blocks
- Air shaftless unwinding(optional)
- Non-stop collection syste(optional)
Machine Price: US$ 35,000.00 - 78,000.00
Die Cutting Samples
Machine Specification
Type | 950 | 1200 | 1300 | 1450 |
Capacity | 150-210times/min | 100-180times/min | ||
Max Cutting Size | 950x540mm | 1200x640mm | 1300x750mm | 1450x750mm |
Precision | ±0.20mm | ±0.20mm | ±0.20mm | ±0.20mm |
Width of Paper Roll | 300-950mm | 300-1200mm | 300-1300mm | 300-1450mm |
Max Diameter of Paper Roll | 1500mm | |||
Suitable Material | 100-800gsm PE coated paper or kraft paper | |||
Total Power | 18kw | 20kw | 20kw | 22kw |
Working Air Source | 0.3m³/min,0.5-0.7Mpa | |||
Machine Weight | 7000kgs | 9000kgs | 10500kgs | 13000kgs |
Overall Dimension | 4.35×2.1×1.850m | 4.35×2.3×1.850m | 4.35×2.4×1.850m | 4.35×2.5×1.850m |
Other Relate Machines
KTPP-BG Paper Box Erecting Machine
40-160pcs/min

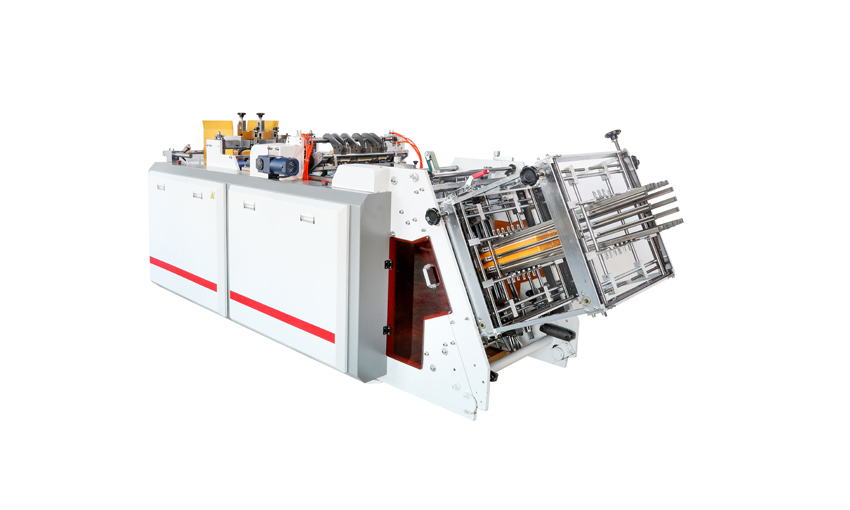

KTPP-BH Paper Box Forming Machine
30-50pcs/min

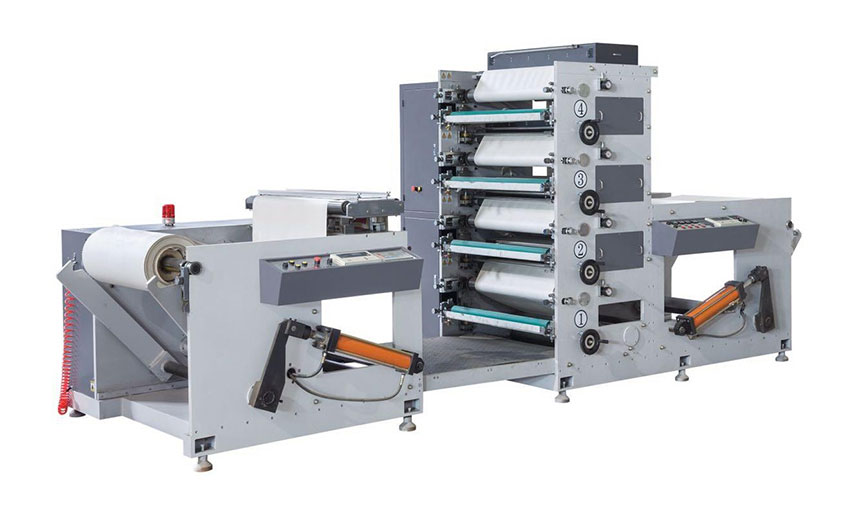

KTFP-Flexo Printing Machine
